The Application of Nonwoven fabric in the Automotive Manufacturing Field

1. Lightweight: Nonwovens are significantly lighter than many traditional textile materials. For example, compared to some woven fabrics, they can be 15 - 30% lighter, which is crucial for automotive manufacturers aiming to reduce vehicle weight. A lighter vehicle not only improves fuel efficiency but also reduces carbon dioxide emissions.

2. Good Filtration Performance: They have excellent filtration capabilities. The fiber structure of nonwovens can effectively capture particles of different sizes, making them ideal for applications such as air and liquid filtration in automobiles.

3. Sound and Heat Insulation: Nonwovens can absorb sound waves and block heat transfer to a certain extent. Their fiber arrangement can disrupt the propagation of sound, reducing noise inside the vehicle. At the same time, they can also act as thermal barriers, maintaining a stable temperature inside the car.

4. Customizability: Through different manufacturing processes and the addition of various additives, nonwovens can be customized to have specific properties such as flame retardancy, water resistance, and antibacterial properties, meeting the diverse needs of the automotive industry.

1. Carpets and Floor Linings

• Nonwoven fabrics are widely used in automotive carpets. In most light vehicles, tufted cut - pile carpets are common, and nonwoven materials are often used as backing. Polyester or a blend of nylon and polyester is typically used for this purpose. For example, in the European market, visco - elastic polyurethane foam - backed nonwoven carpets are popular, while in the United States, cotton - padded nonwoven backings are preferred. Some manufacturers are now using more molded polyurethane foam due to its superior acoustical and physical properties. Nonwoven - based carpets not only provide a comfortable foot - feel but also effectively reduce road noise.

• Floor linings made of nonwovens can protect the vehicle floor from scratches and corrosion. They also contribute to sound insulation, enhancing the overall driving comfort.

2. Seat Materials

• Nonwoven polyester has become a popular choice for seat coverings, laminate, and cushion materials. Seats made with nonwoven materials often feature a knitted three - dimensional structure. This structure conforms to the external shape of the seat, providing better support and comfort. Nonwovens used in seats can also be treated to have properties such as stain resistance, making them easier to clean and maintain.

• In addition, nonwoven fabrics are used as seat reinforcement materials. Their high strength can enhance the durability of the seat structure, ensuring that the seat can withstand long - term use and various loads.

3. Headliners

• Headliners are used to cover the metal roof inside the car. They are usually composite materials, with a face fabric and a nonwoven backing. These nonwoven - backed headliners are generally multilayered, endowing them with diverse functionalities. They not only improve the aesthetics of the interior but also have good sound absorption ability, reducing the reverberation of sound inside the car. For example, in some luxury cars, nonwoven - based headliners are designed to have a soft and luxurious feel, enhancing the overall interior quality.

1. Air Filters

• Nonwoven filters are crucial components in automotive air intake systems. Different types of nonwoven materials are used, with some high - performance air filters made of nonwoven polypropylene fabric reinforced with activated carbon. The activated carbon significantly enhances the fabric's absorption capacity, enabling the filter to effectively remove dust, pollen, and harmful gases from the air entering the engine. Some nonwoven filters can even filter out fine particles as small as PM2.5, protecting the engine from damage and ensuring clean air for combustion, which in turn improves engine performance and fuel efficiency.

2. Oil and Fuel Filters

• Nonwovens are also widely used in oil and fuel filters. In oil filters, nonwoven materials can effectively filter out impurities in the engine oil, such as metal particles and sludge, ensuring the normal operation of the engine's lubrication system. For fuel filters, nonwovens can remove contaminants in the fuel, preventing damage to the fuel injection system and other components. Their good chemical resistance allows them to withstand the corrosive effects of oil and fuel, maintaining stable filtration performance over a long period.

1. Trunk Liners

• Nonwoven fabrics are used to make trunk liners, which protect the trunk area from scratches and dirt. They are lightweight and easy to clean, and their cushioning effect can prevent damage to items placed in the trunk. In addition, nonwoven trunk liners can also contribute to sound insulation, reducing the noise transmitted from the rear of the vehicle.

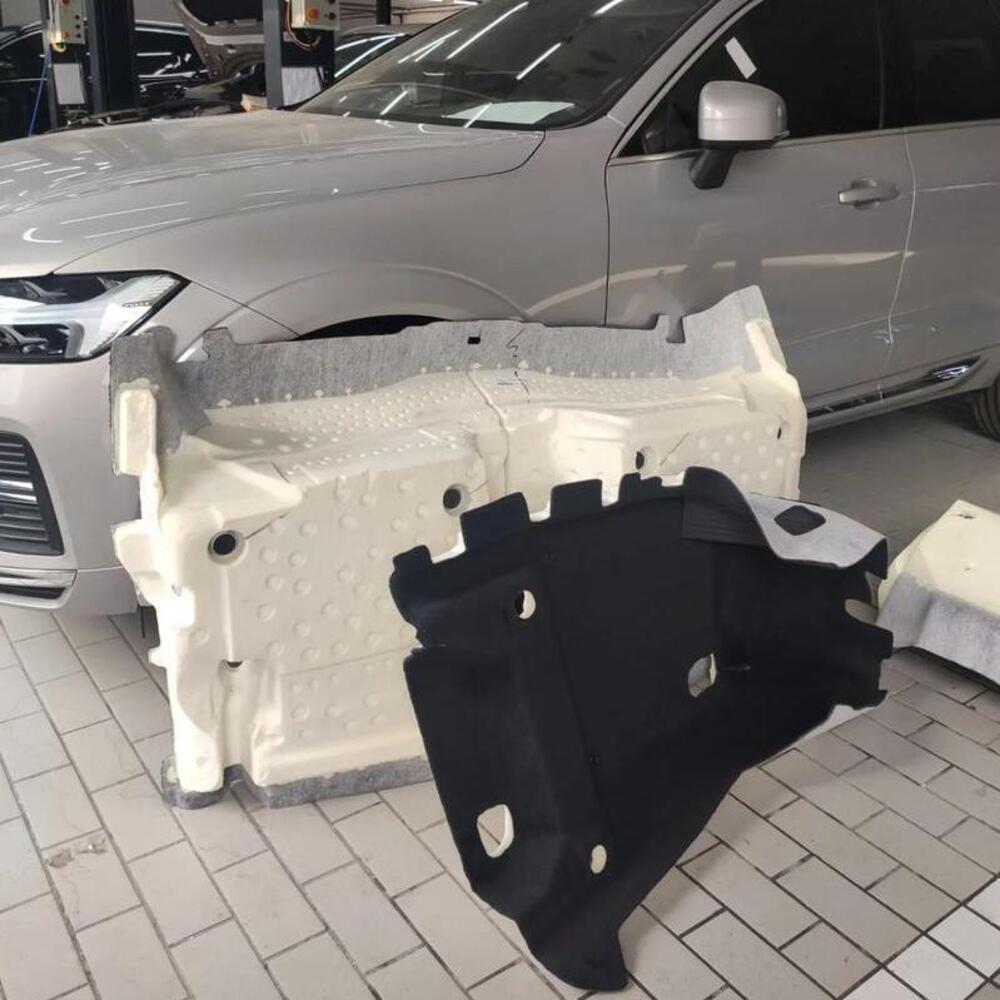

2. Underbody Shields

• Some automakers use nonwoven - based materials for underbody shields. These nonwoven products, such as dense needle - punched materials, can replace heavier polyvinyl chloride (PVC) layers. This substitution not only reduces the vehicle's weight but also provides good protection for the underbody components against road debris and water splashing, improving the vehicle's durability and safety.

1. Spunbond Nonwoven Fabrics

• HYFabricsupply's spunbond nonwoven fabrics are characterized by their high strength and durability. These fabrics are produced through a continuous extrusion and spinning process, resulting in a uniform fiber structure. In automotive applications, they can be used in areas that require high - strength materials, such as seat reinforcements. Their excellent tensile strength ensures that the seats can withstand the repeated stress of daily use.

• They also have good chemical resistance, making them suitable for use in engine - related components like air filters. The spunbond nonwovens can effectively resist the corrosion of engine oil and fuel vapor, maintaining their performance over time.

2. Needle - Punched Nonwoven Fabrics

• The needle - punched nonwoven fabrics provided by HYFabricsupply have unique properties. They are made by mechanically interlocking fibers with needles, creating a thick and dense structure. In the automotive industry, these fabrics are often used in carpet backings and acoustic insulation materials.

• In carpet backings, their thick and durable nature provides good support for the carpet surface, enhancing the carpet's wear resistance. As acoustic insulation materials, the needle - punched nonwovens can effectively absorb sound waves, reducing the noise inside the vehicle and creating a more comfortable driving environment.
