What is the polyester stitchbond nonwoven fabric？
Polyester stitchbond nonwoven fabric is a stitch-reinforced nonwoven fabric made by using polyester fibers (or polyester base fabrics) that are mechanically reinforced with stitching yarns on a multi-needle stitch-bonding machine.It is based on a non-woven fiber web as the base layer, and then stitch in the same direction to provide the fabric with greater strength.
How polyester stitchbond nonwoven fabricIs is Made？
Polyester stitchbond uses a process called stitch bonding:
1.Polyester fiber web or polyester spunbond base is prepared.
2.A multi-needle stitching machine (e.g., Malimo/Maliwatt/Malivlies type) inserts yarns vertically through the web.
3.The stitching yarns bind the fibers together, reinforcing the structure.
4.The fabric may be dyed, printed, laminated, coated, or treated depending on the final application.
Advantages of polyesterstitchbond nonwoven fabric
Polyester stitchbond nonwoven fabric offers several advantages:
High tensile strength
Excellent tear resistance
Low elongation (much lower than knitted fabrics)
Abrasion resistance
Good chemical resistance
Stable up to ~150°C (polyester softening point ~220°C)
Hydrophobic / fast drying
Easy to print
Easy to coat or laminate
Good dimensional stability during sewing or convertin
Stitchbond excels in strength, stability, and printability, making it popular where performance + low cost are required.
Advantages Compared With Other Nonwoven
| Feature | Polyester Stitchbond | Spunbond | Needle-punched |
| Strength | Level 5 | Level 4 | Level 4 |
| Tearing resistace | Level 5 | Level 3 | Level 4 |
| Dimensional stability | Level 5 | Level 3 | Level 3 |
| Printability | Excellent | Moderate | Poor-Moderate |
| Cost | Medium | Low | Medium |
| Softness | Medium | High | Low |
Application of polyester stitchbond nonwoven fabric
Polyester stitchbond is used widely across industrial and consumer markets.
Construction / Building Materials
Roofing underlayment base

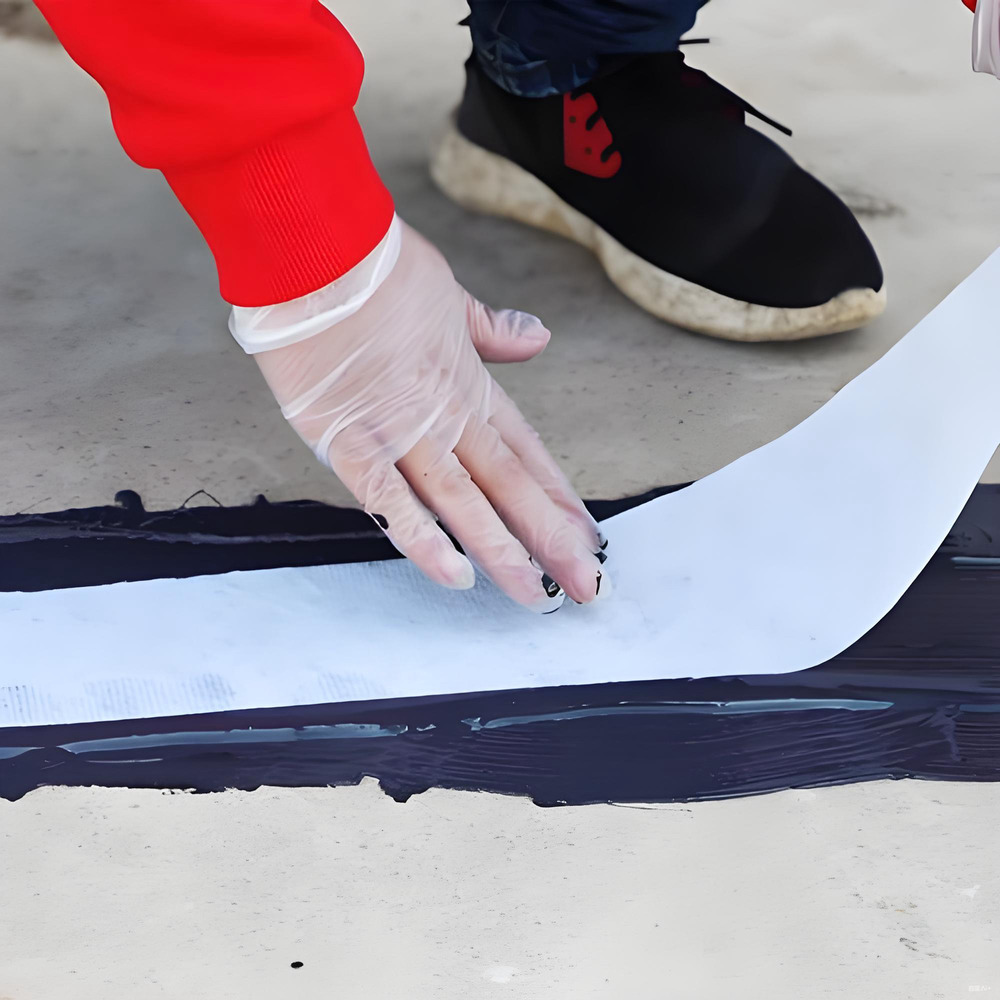

Waterproofing membrane reinforcement
Acrylic / PU coating substrates
Bitumen reinforcement
Wall covering base fabrics
Geotextile reinforcement
Mattress ticking and backing
Upholstery backing
Curtain & blind backing
Cleaning wipes and mop cloth
Table covers
Shoe lining
Insole reinforcement
Strobel fabric
Interior lining
Carpet backing
Trunk liners
Reusable shopping bags
Protective covers (furniture, mattress, car covers)
Speccifications of polyester stitchbond nonwoven fabric
The specifications of the polyester fabric woven are diverse, mainly including parameters such as width of the fabric, roll length, and unit area weight (g/m²).
1. Width specification
The width options for woven polyester fabric are diverse. Common widths include 10cm, 15cm, 20cm, 25cm, 30cm, 50cm, 100cm (or 1 meter), etc., to meet the needs of different construction areas.
2. Roll Length Specifications
The roll length specifications are also flexible. Common lengths include 10 meters, 20 meters, 50 meters, and 100 meters. Some products also support custom lengths.
3. Unit Area Weight (Gram Weight)
Gram weight is an important indicator for measuring its thickness and strength. Common values include 60g/㎡, 65g/㎡, 70g/㎡, 80g/㎡, 100g/㎡, 110g/㎡, and 120g/㎡, etc.
2. The greater the weight, the thicker the material is usually, and its load-bearing capacity is also stronger. The choice should be made based on the actual engineering requirements.
4. Other Parameters
Some products will also indicate the thickness (such as 0.25mm - 0.55mm)
4. Extension Rate and Other Parameters
7. Additionally, its special weaving process (such as the arrangement of reinforcing threads in the warp direction and the weft direction in strands) enables it to possess excellent mechanical properties and breathability, which is an important distinction from ordinary non-woven fabrics.
Supplier of polyester stitchbond nonwoven fabric
HYFabricsupply is a professional supplier of polyester fabric sewing. The company has multiple sewing lines for polyester fabric as well as coating and anti-slip treatment equipment. Specializing in the field of building waterproofing, furniture (beds, sofas, chairs, carpets, shoes etc.) manufacturing, and packaging bag industry, we continuously provide high-quality fabrics and can accept custom orders of various specifications
